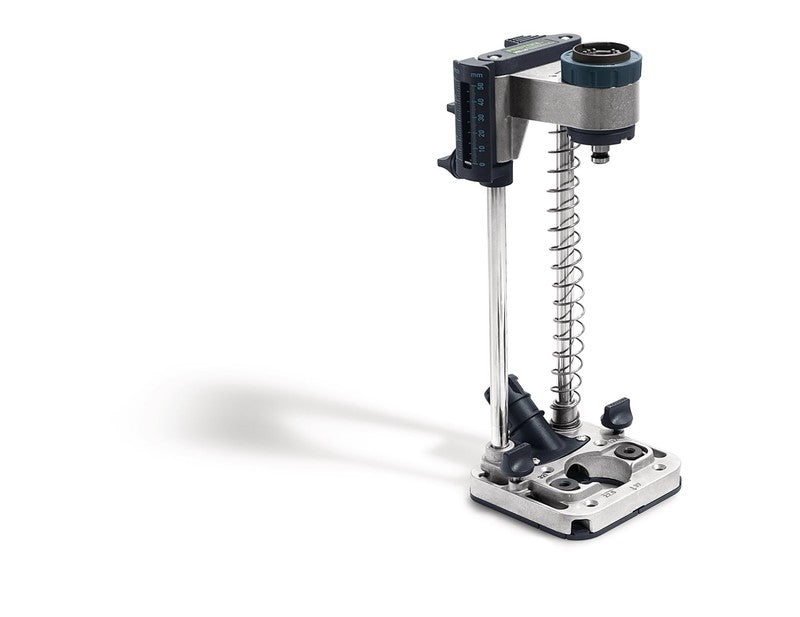

Festool Mobile Drilling Attachment MB 40-Set

Clean drilling. Hook up a CT Dust Extractor to keep the hole and your workspace clean.|Quick tool changes. Snap in Festool cordless drills and hammer drills—no tools needed.|Set your depth. Drill up to 2" (50 mm) deep with clear depth markings in mm or inches—perfect for cup hinges or series drilling.|32 mm system ready. Comes with 3 mm and 5 mm pins. Set it once—the pin stays in place for the whole run.|Edge drilling made easy. Drill straight and parallel to edges, fast and accurate.|Perfect for panel edges. Get clean, accurate holes right where you need them.|Drill in a straight line. Guide rail adapter snaps on without tools—great for long rows of holes.|Custom setup. Remove the spring for special jobs where you need more control.|Mountable base. Bolt it to your workpiece or custom jig using the holes in the base plate.|Pinpoint accuracy. Helps with lineups, hinge drilling, and consistent hole spacing.

Contains: FSA-MB 40 guide rail adapter, parallel side fence incl. stop for end face holes (PA-MB 40), hole series pin 5 mm, hole series pin 3 mm, TX 15 key, Systainer SYS3 M 187

Technical Details:
Weight 3.1 lbs (1.40 kg); Dust extraction connection dia. 1-1/16" (27 mm mm); Height 12-1/4" (312.00 mm); BASE 4-3/8"x4-1/2" (110 mm x 114.00 mm mm); Max. drilling diameter for softwood (Forstner drill bit) 1-9/16" (40.00 mm); Max. drilling diameter for softwood (auger bit) 5/8" (16.00 mm); Max. screw diameter (templates/fixtures) 5/32" (4.00 mm); Setting range of depth stop 0 - 2" (0.00 mm - 50.00 mm mm); Stroke without depth stop, without spring 8" (203.00 mm); Stroke with depth stop, incl. spring 7-3/8" (187.00 mm); Holder FastFix
