Amana Tool Guitar Fingerboard Shank Router Bits
Option
Amana Tool Guitar Fingerboard Shank Router Bits
54542 Guitar Fingerboard Radiusing 12 Inch Radius x 0.8 Dia x 1-7/8 x 1/2 Inch Shank Router Bit
JMP Wood Brooklyn
760 E 96th St
Brooklyn NY 11236
United States
JMP Wood Carteret
1100 Milik Street
Carteret NJ 07008
United States
Excellent for Guitar Making Luthier Makers!

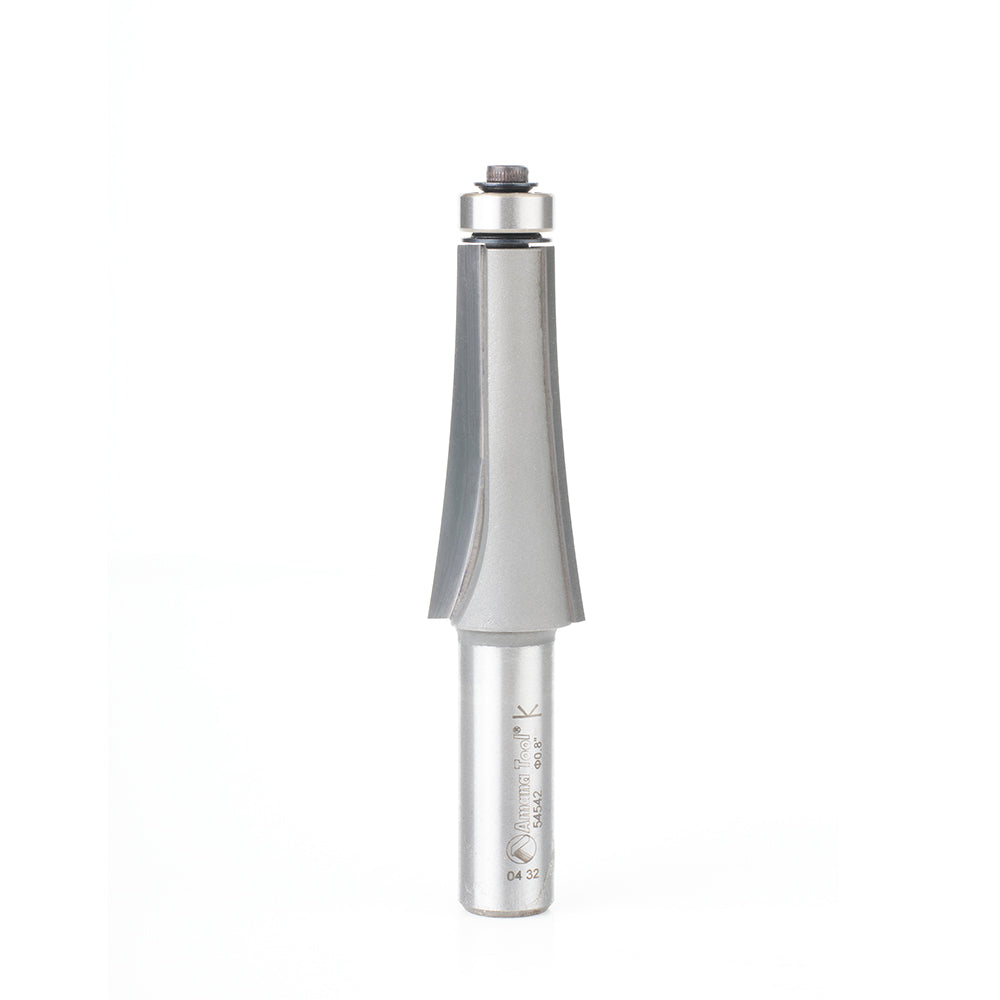

The Guitar Fingerboard Radiusing Router Bit is designed to add radius to your guitar fretboard, with a 12” radiused cutting height of 1-7/8” for fretboards up to 3-3/4 wide.
Affix the fingerboard to the planed and squared backing stock of the same width, using double faced tape. Adjust the fence to be flush with the bearing, then proceed to route as described below.
First Pass:
Line up the top of the blade with the center of the stock to route the first half of the radius.
Second Pass:
Flip the stock assembly along the length and route the second side to complete the radius.
